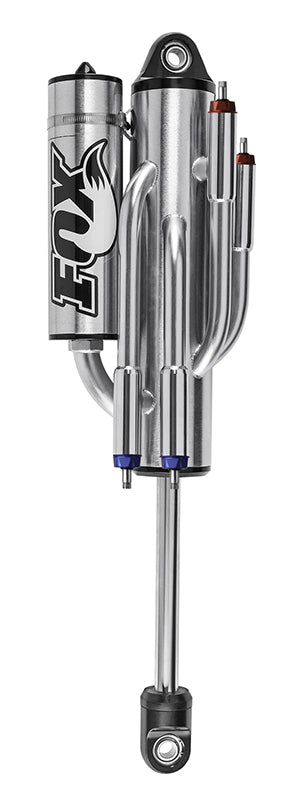

Fox 4.0 Factory Series Bypass Piggyback

Overview: The FOX 4.0 Factory Series Bypass shock is the ideal position-sensitive shock for lightweight unlimited offroad racecars and pre-runners. Bypass shocks allow precise adjustment of multiple stages of compression and rebound damping. The 4.0 Factory Series Bypass shock adds another competitive option to FOX's already extensive bypass shock lineup. The expanded volume provides a wider damping range and increased cooling-optimizing the suspension and increasing the vehicle's capabilities. The 4.0 Bypass shock uses the same extended and compressed lengths as the 3.5 Factory Series Bypass for easy upgrading. The 4.0 Bypass shock comes standard with FOX's Rotating Body Cap (RBC) technology that allows quick and easy positioning of the shock body with simple hand tools. RBC eliminates the need of re-clocking body cap threading to achieve shock body rotation for chassis clearance issues. The 1.125" hard chrome-plated 17-4 H900 stainless steel shock shaft provides increased strength and stiffness. Multiple stroke lengths are available with a large 3.5 piggyback reservoir and 4 or 5 tube layouts. FOX also offers many custom options to maximize your suspensions performance while adhering to the vehicle's space restrictions. Options include custom bypass tube layouts, External Cooling Systems (ECS), remote reservoir mounting, and eyelet lengths.

Specs:

Body:

• Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies

Components:

• Black anodized 6061-T6 billet aluminum

Shaft:

• 1.25" hard chrome plated stainless steel 17-4 H900

Piston:

• Race-developed high-flow piston design

Valving:

• Proprietary deburred valve shims

Seals:

• Redundant sealing pack system main seal, wiper seal, scraper seal
• High temperature Viton seals

Oil:

• FOX formulated for ultimate performance at variable temperatures

Reservoir:

• Piggyback
• Optional remote reservoir

Mounting:

• Lined, heat-treated, alloy steel spherical bearings 5/8" bolt x 1 1/2" wide

Adjustments:

• Rotating Body Cap
• Compression bypass adjusters
• Rebound bypass adjusters
• Nitrogen pressure
• Compression valving
• Rebound valving

Quick Adjust Bypass (QAB)

Available for all 2.5, 3.0, and 3.5 external bypass shocks. Quickly and easily manually adjust bypass tubes without tools. The adjuster has the same flow and range as standard bypass units. The QAB has a definitive click at every quarter turn. O-ring seal keeps moisture and contaminants out.
